were is the evap canister located on a 2006 equinox ? I Have a large leak in the evap system, PO455 please help !


Join Date: Apr 2009
Posts: 1,947
Orange County, CA

September 23rd, 2009, 10:54 PM   #2
Super Moderator
ROTM Coordinator

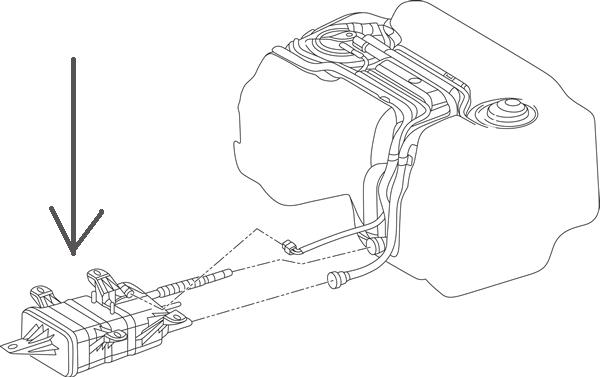

The EVAP emissions canister is located under the center of the vehicle. It has three EVAP line connections. The EVAP fresh air, the EVAP vent and the EVAP purge lines.


Attached Thumbnails
2006 Equinox EVAP-gm-04-00-4767l.jpg

Last edited by Mike Sigmond; September 23rd, 2009 at 10:58 PM.

Join Date: Sep 2009
Posts: 11
Oklahoma City

September 24th, 2009, 8:28 PM   #3
CF Beginner
Thank you very much !! I will get under there and see if a line is off , hopefully I can find the problem so my check engine light will go off !!


Join Date: Apr 2009
Posts: 1,947
Orange County, CA

September 24th, 2009, 9:36 PM   #4
Super Moderator
ROTM Coordinator
Sure thing, if you do find a broken or loose line, repair it as needed then disconnect your battery for about 10-15 min, that will reset your codes if you dont have a scanner to do it.


Join Date: Sep 2009
Posts: 11
Oklahoma City

September 27th, 2009, 10:44 AM   #5
CF Beginner
Mike Sigmond  Sure thing, if you do find a broken or loose line, repair it as needed then disconnect your battery for about 10-15 min, that will reset your codes if you dont have a scanner to do it.
I checked all the lines and cant find anything loose or disconnected, I have replaced the gas cap with a new one, the PO455 code shows it might be a defective purge or vent solenoid , could you please advise as where this might be located ? thanks again for your assistance.


Join Date: Apr 2009
Posts: 1,947
Orange County, CA

September 27th, 2009, 11:05 AM   #6
Super Moderator
ROTM Coordinator
Do you have the 3.4 or the 3.6 engine? I am sure its the 3.4 but just checking.

Its on the intake manifold, I can look up a diagram later tonight.


Last edited by Mike Sigmond; September 27th, 2009 at 11:13 AM.

Join Date: Sep 2009
Posts: 11
Oklahoma City

September 27th, 2009, 7:25 PM   #7
CF Beginner
it is the 3.4 thanks


Join Date: Apr 2009
Posts: 1,947
Orange County, CA

September 27th, 2009, 10:39 PM   #8
Super Moderator
ROTM Coordinator
The evaporative vent solenoid is located on the top of the EVAP canister.

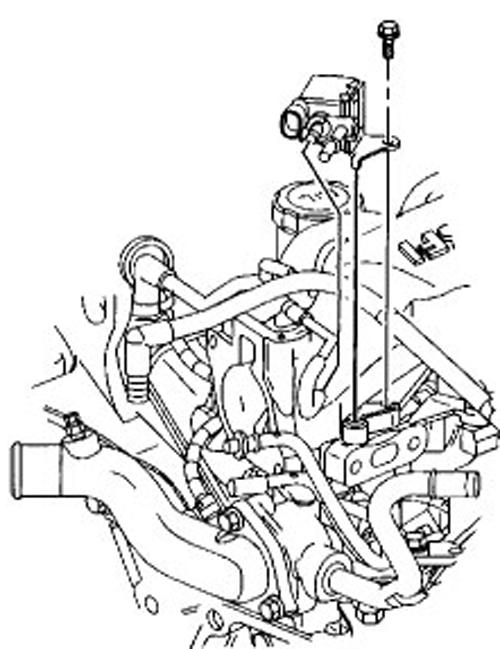

Here is a pic of where the purge valve is on the intake manifold...

Attached Thumbnails
2006 Equinox EVAP-gm_mv_ven_purgevalvel.jpg

Join Date: Sep 2009
Posts: 11
Oklahoma City

September 28th, 2009, 5:33 PM   #9
CF Beginner
Thank you very much !!!!


Join Date: Jun 2010
Posts: 1

June 3rd, 2010, 9:01 PM   #10
CF Beginner
Leak?

How are you checking this for leaks?
