Hi all!

I replaced the factory installed Denso Navi with an Astrium GEE-1102.

All works so far, but the factory rearview camera.

The Astrium has a separate RCA plug for the video signal. So I need to rewire this from one of the incoming cables on the 4 plugs.

I have searched for days now, but I cannot find a wiring diagram for the navi, anywhere.

If anyone has a document or a link, please share.

Thanks in advance
Frank



Try this...
http://www.revbase.com/BBBMOTOR/Wd/D...dPdf?id=137343
Page 4 has the camera connections, pg 3 shows where they are connected to the radio.



Bruce, thanks a lot for this. Sorry for the delay, I was away on business for a few days.

Would you have a source as to what signal to expect? I guess from the camera to the Image Display Module there should be a regular Video Signal (PAL/something). But what do I have from the Module to the Navi? There it only says: Cam Signal + and Cam Signal - ....

I sure can rewire from the Module to the Dash, but I'd rather not, if not needed

Thanks in advance
Frank

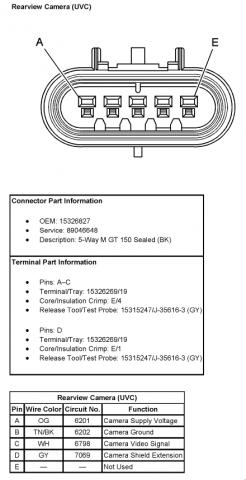

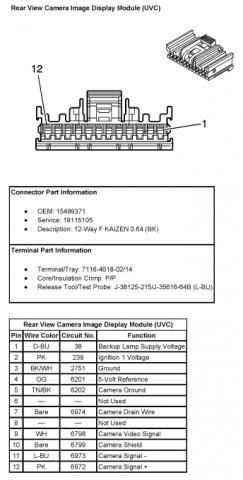

See if these help any...



Thanks. Any info helps. I guess I have to track down the old multimeter and do some old-school measuring of voltages



Success. Thanks to all who helped.

In the end it was the wire color which gave it away. Purple and light blue as the shield.

Measured 0V standard and around +5.5V on reverse.

Now I have a perfect image of the stuff behind me, once I back up.

Thanks again
Frank
