I put a new timing set in and now I don't remember how the supports and brackets for the alt., ac compressor, and the power steering pump go back. Does anyone have a parts blow-up, schematic, diagram, or photos of this? It would be of great help in reassembly.

Thanks,
Yodabond



what engine do you have ? i have a gm factory manual it has a fair amount of info in it and i can take a look tomorrow !



old dog,

The engine is a 2.8L engine code B.



ok as soon as i get my heart started i will go out and look if any thing mine is a 85 2.8 and i can take some pictures .

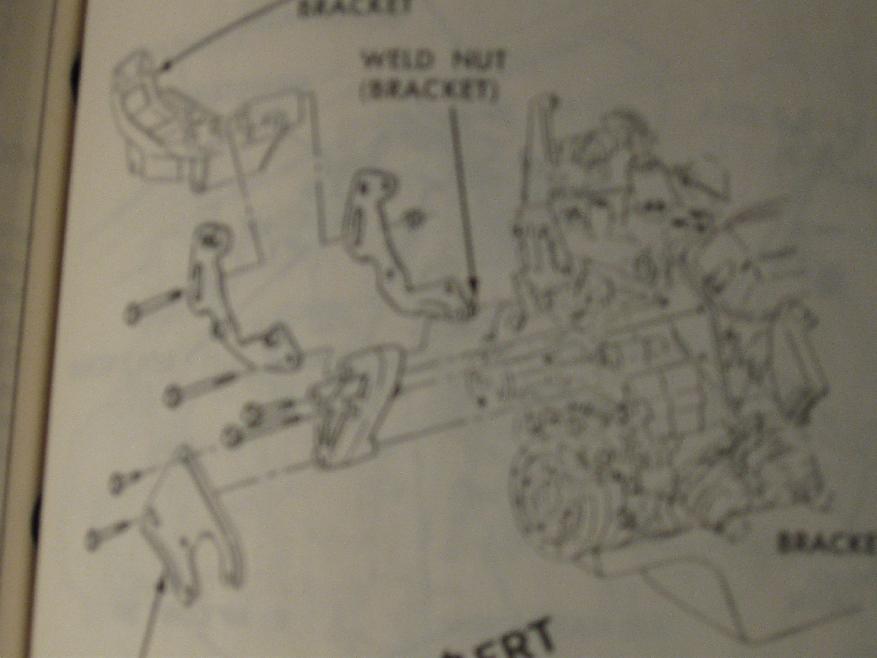

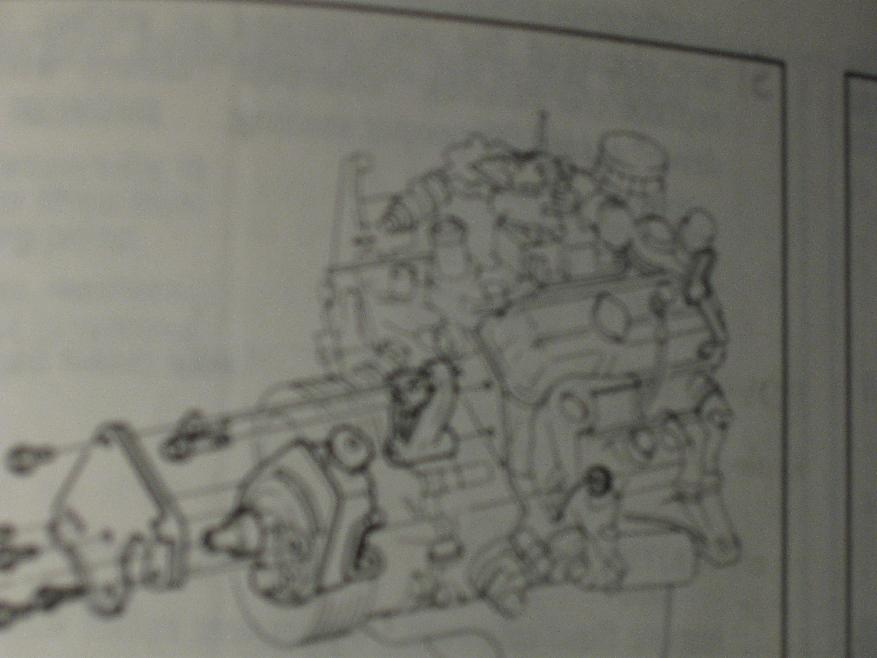

well i took some pic's of the pages the manual was going to be a bitch to take apart to scan i hope they will show enough .

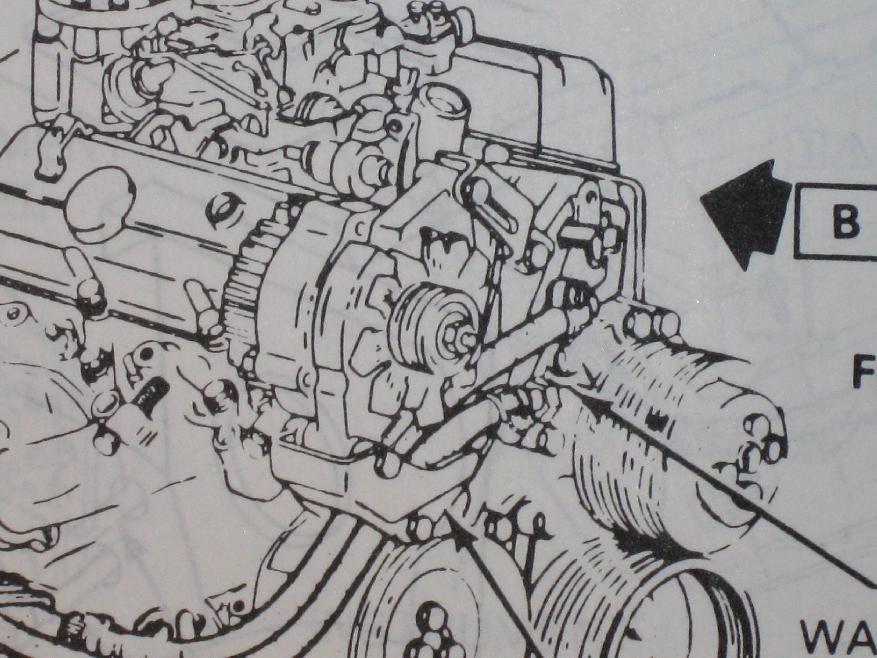

more pictures

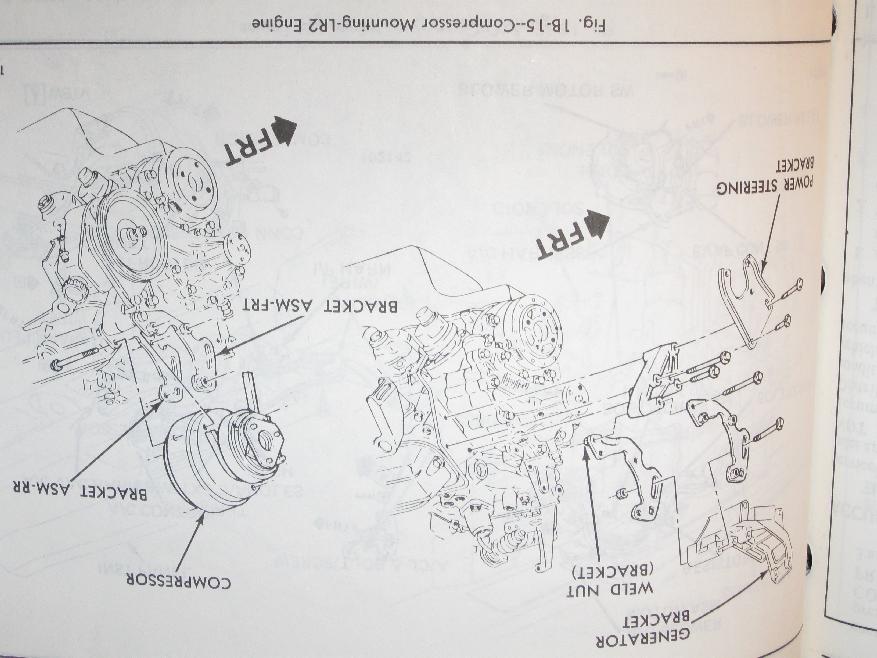

just 1 more



old dog,

Thank you for the images, they will definitly help with reassembly. If I ever have chance to help with anything I will do so. Again, THANK YOU.

Sincerely,

Robert C Davies



no problem i had to buy it when i bought the truck and it did not run because it had a broken connecting rod ,and had to put a long block in it .i can under stand trying to remember were everything goes !
