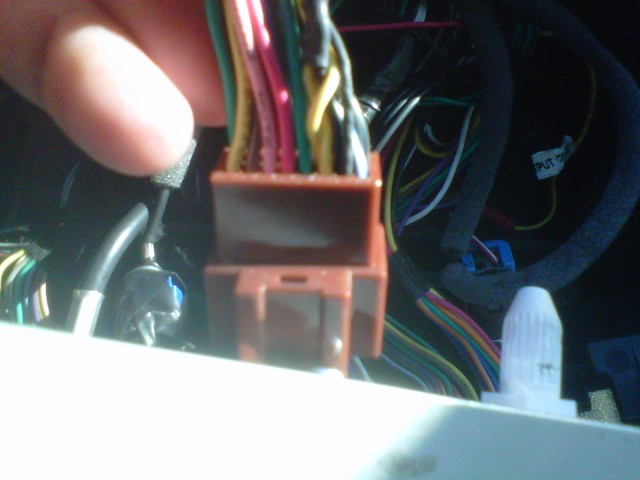

Thanks - I just searched, but didn't see it. Can you please look at my pic attached and let me know which one should be connected to the VSS? i.e."the green one" or "the dark pink one."

(note - I am not asking for the wire by the brake pedal)

I read all 60+ pages of this thread (which is a great thread), but couldn't find what I needed. All the pics i seemed to come across with the brown plug I believe were non-existant. Thank you greatly in advance for the help.



did you happen to see my post on the previous page? go to post #632 and click on the link, every wire is explained in there.
you didn't mention what kind of truck you have so I'm assuming you have an '07 and up, unless you have an older model truck then I don't know, let me know and we go from there.



I have an 07. The link you mentioned, I believe is not working. Here's the message recieved when clicking, "Invalid Forum specified. If you followed a valid link, please notify the administrator"

However, I did find from another source that the answer to my question is the VSS wire the green wire in my picture above in the brown connector. <!-- / main error message --><!-- <input type="submit" class="button" value="Go Back" accesskey="s" onclick="history.back(1); return false" />
-->



well I think that happens if you don't have that many posts, but I might be wrong, but I'm glad you have it figured out.
if anything copy and paste the link and I guess it will take you there, it has the 4 plugs explained wire by wire, I found it by searching "schematics" and it only took me like 25 min to find it for another member that was in need of the placement of the VSS wire.



This is thanks to other members in the forum
here you goooooooooooooooooo!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!







14-Pin Connector C1:

Pin Wire Color Circuit No. Function
1 RD/WH 340 Battery Positive Voltage
2 TN 201 Left Front Speaker Output (+) (UQ3)
TN 511 Left Front Low Level Audio Signal (+) (UQA/UQS)
3 L-GN 200 Right Front Speaker Output (+) (UQ3)
L-GN/WH 512 Right Front Low Level Audio Signal (+) (UQA/UQS)
4 PK 5149 Voice Recognition Audio Signal (UE1)
5 PK/BK 5152 Low Reference (UE1)
6 WH 7066 Entertainment Remote Enable Signal
7 YE 6817 LED Backlight Dimming Control
8 BK 2550 Ground
9 GY 118 Left Front Speaker Output (-) (UQ3)
D-GN 1947 Left Front Low Level Audio Signal (-) (UQA/UQS)
10 D-GN 117 Right Front Speaker Output (-) (UQ3)
OG/BK 1546 Front Low Level Audio Signal (-) (UQA/UQS)
11 Bare 2011 Drain Wire (UQA/UQS)
12 Not Used
13 D-GN 5060 Low Speed GMLAN Serial Data
14 Not Used

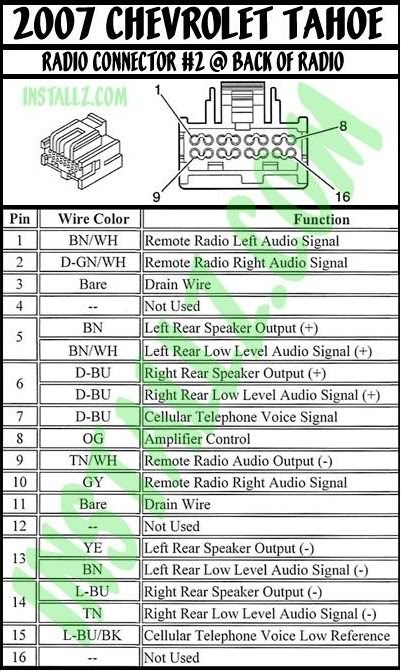

16-Pin Connector C2:

Pin Wire Color Circuit No. Function
1 BN/WH 367 Remote Radio Left Audio Signal (U2K)
2 D-GN/WH 368 Remote Radio Right Audio Signal (U2K)
3 Bare 2099 Drain Wire (UQA/UQS/UK6)
4 L-GN 7396 DVD Video Signal 2 (+) (DNU)
5 BN 199 Left Rear Speaker Output (+) (UQ3)
BN/WH 599 Left Rear Low Level Audio Signal (+) (UQA/UQS)
6 D-BU 46 Right Rear Speaker Output (+) (UQ3)
D-BU 546 Right Rear Low Level Audio Signal (+) (UQA/UQS)
7 D-BU 658 Cellular Telephone Voice Signal (UE1)
8 OG 6978 Amplifier Control (UQA Except Y91)
9 TN/WH 372 Remote Radio Audio Output (-) (U2K)
10 GY 388 Remote Radio Right Audio Signal (U2K)
11 Bare 1573 Drain Wire (U2K)
12 WH 7394 DVD Video Signal 2 (-) (DNU)
13 YE 116 Left Rear Speaker Output (-) (UQ3)
BN 1999 Left Rear Low Level Audio Signal (-) (UQA/UQS)
14 L-BU 115 Right Rear Speaker Output (-) (UQ3)
TN 1946 Right Rear Low Level Audio Signal (-) (UQA/UQS)
15 L-BU/BK 659 Low Reference (UE1)
16 D-GN/WH 7395 Video Mode 2 Signal (DNU)

16-Pin Connector C3:

Pin Wire Color Circuit No. Function
1 YE 2059 Auxiliary Audio Left Signal
2 WH 2058 Auxiliary Audio Right Signal
3 L-BU 5826 Left DVD Audio Signal (+)
4 WH 5828 Right DVD Audio Signal (+)
5 OG/BK 5831 Remote Infra Red Signal (+)
6 PK/BK 5844 Video Bright Control
7 D-GN 6975 DVD Video Signal (+)
8 PU 2056 Auxiliary Video High Signal
9 Bare 5345 Drain Wire
10 L-GN/BK 5845 Video Module Signal
11 PU 6979 DVD Audio Common
12 Bare 6980 DVD Audio Shield
13 TN/WH 5830 Remote Infra Red Signal (-)
14 Bare 6976 DVD Video Drain Wire
15 WH/BK 5335 DVD Video Signal (-)
16 Bare 5346 Video Drain Wire

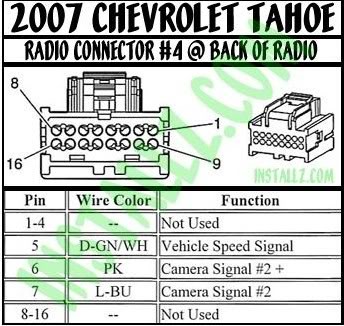

16-Pin Connector C4:

Pin Wire Color Circuit No. Function
1 Not Used
2 Not Used
3 D-BU 6760 Center Channel Low Level Audio Signal (UQS)
4 WH 6763 Subwoofer Low Level Audio Signal (UQS)
5 D-GN/WH 817 Vehicle Speed Signal (UVC)
6 PK 6972 Camera Signal #2 + (UVC)
7 L-BU 6973 Camera Signal #2 (UVC)
8 PU 5837 Amplifier Audio Prompt Signal (+) (UQS)
9 Not Used
10 Not Used
11 OG 6761 Center Channel Low Level Audio Signal (-) (UQS)
12 PK 6762 Subwoofer Low Level Audio (-) (UQS)
13 Bare 6759 Drain Wire (UQS)
14 Not Used
15 Bare 5838 Drain Wire (UQS)
16 GY 5836 Amplifier Audio Prompt Signal (-) (UQS)



Shawn,
I have a 2007 Chevy Tahoe LTZ with OEM Nav/Bose System. I want to get bluetooth. After researching a while I learned that I need to upgrade both my Nav unit and the VCIM (with Bluetooth antenna) to atleast a 2009, 2010 if I want USB.
Am I walking into a nightmare?



Thanks a lot for this post, I was having no luck with onstar helping me with this feature, after no less than a dozen calls i finally got them to send a refresh signal. thanks again..



Dude, there is more to do. Most expensive would be new onstar modul. 2007 did not support BT.
I was about to go that way, but too much problems. Read my posts, there is step by step guide and explain.
That's why i sold my OEM navi and bought Rosen OEM look unit. It's better than GM OEM. All is plug and play and works as charm.

I got Bose with rear overhead unit and all works great. Also navi and DVD works in drive mode.



I have a 2008 Tahoe LT and want to install Nav and backup Camera. How do I know if I can install it in my Tahoe and where do I find all the stuff included for it.



only different is, if you have Bose or non Bose system. Basically u can add anything OEM in to it.
Backup camera will require wiring and backup camera.
