9005 LED bulbs work as headlight high low beam on 2016 2017 Chevrolet Malibu
Upgrading your stock halogen headlights to LED can make a huge difference in visibility and style. In this illustrated guide, I'll walk you through the step-by-step process of swapping out those dim halogens for bright white LEDs on your car.
For 2016-2017 Chevrolet Malibu, the upgrade process is somewhat complex. However, fortunately this is a dual light structure, where the low beam and high beam share one bulb, which means you only need to complete the installation once. We'll go over what you need to know before getting started, how to remove the old bulbs, installing the new LEDs, and testing to make sure everything works properly. Follow along as I take you through this simple upgrade that can drastically improve the look of your car and safety of your nighttime driving. Let's get started!
Installation of high low beam
Picture1: Lasfit LAplus 9005

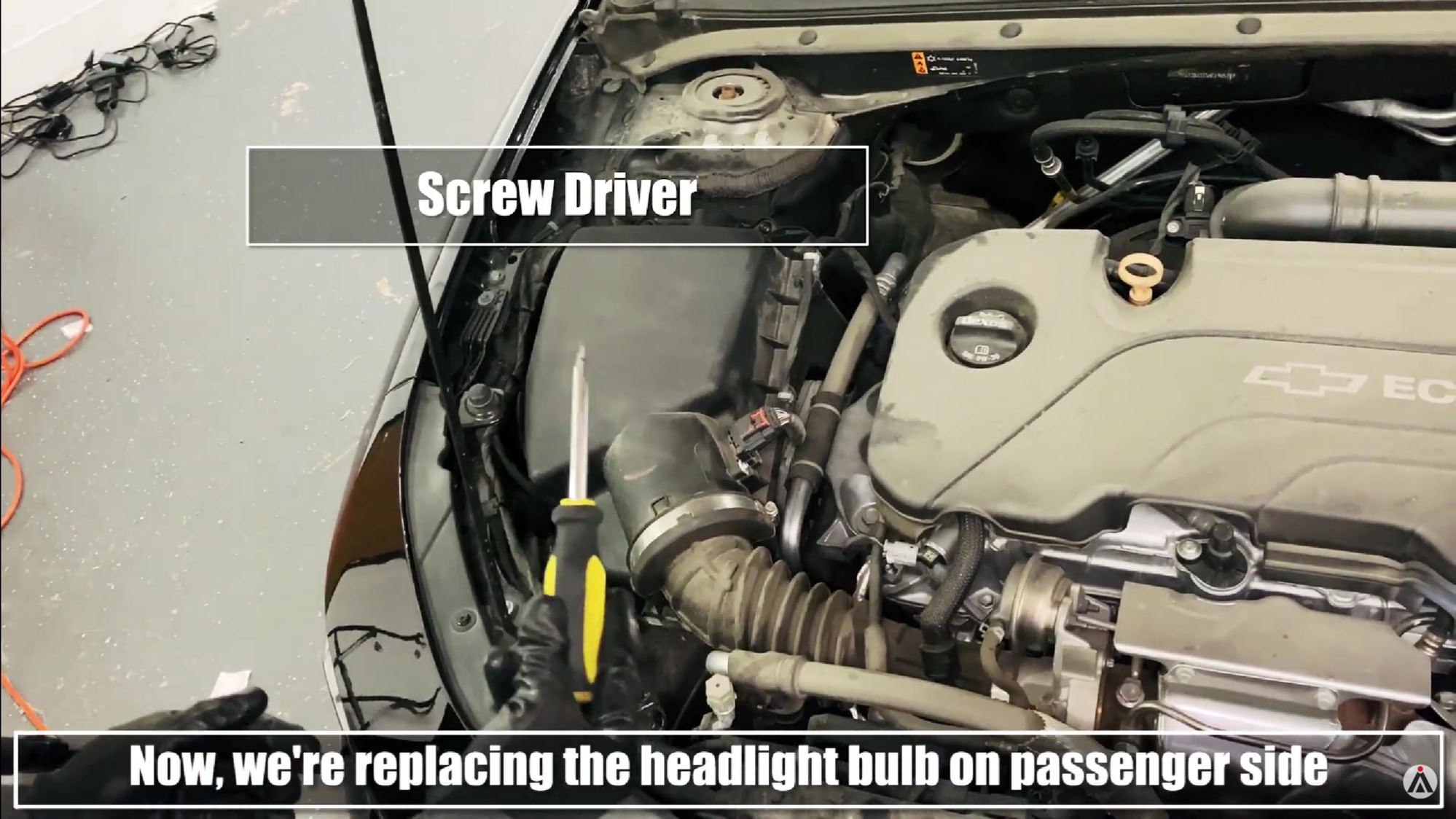

Picture2: Replace teh headlight bulb on passenger side first.

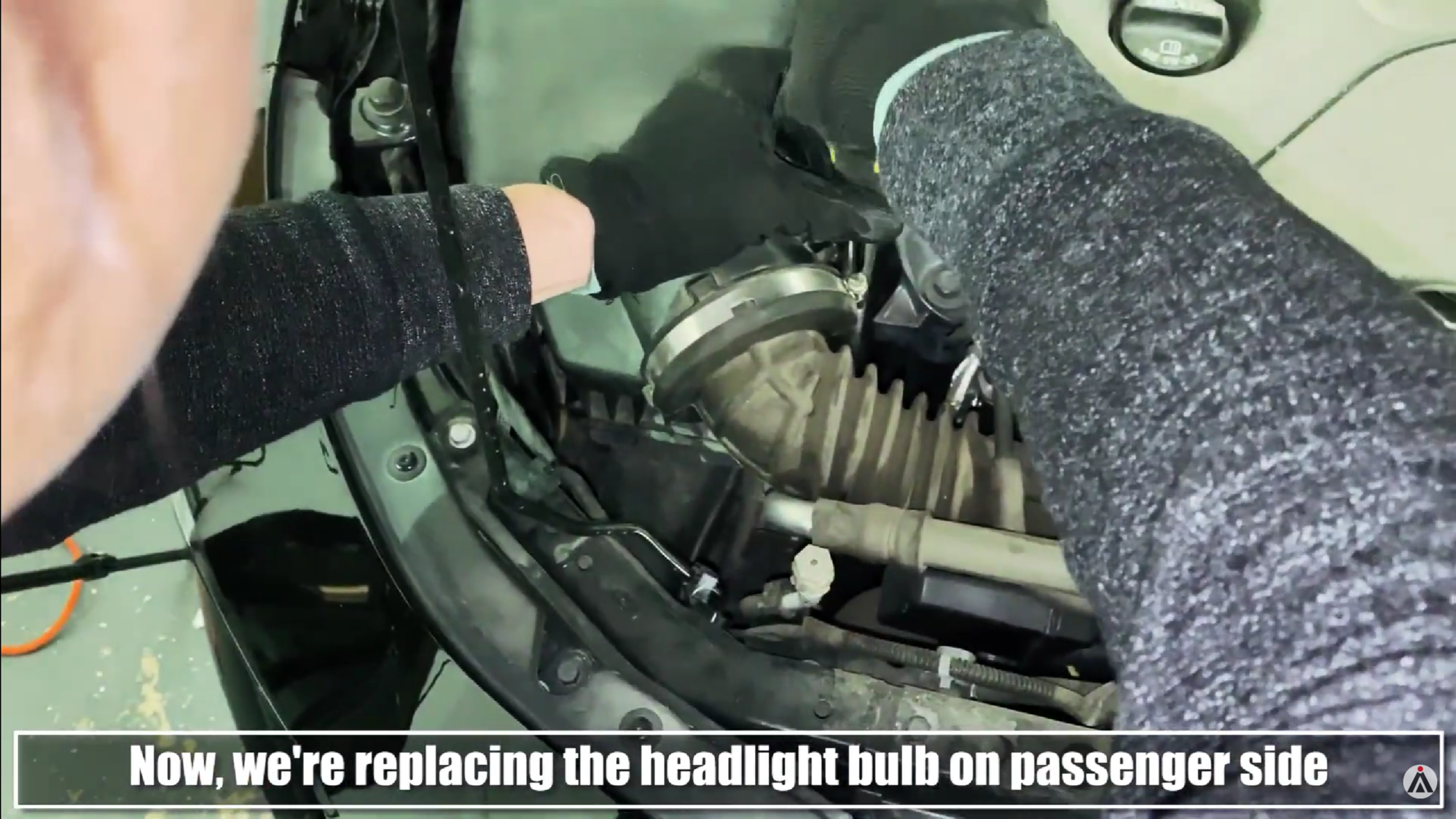

Picture3: Use the screw driver to loosen the clamp up.
Picture4: It need to remove the intake, then we can get more space to reach the headlight bulb and install the LED bulb.
Picture5: Pry open the clip to detach the cable from the intake.
Picture6: Detach the entire cable from the intake, this may take some effort.

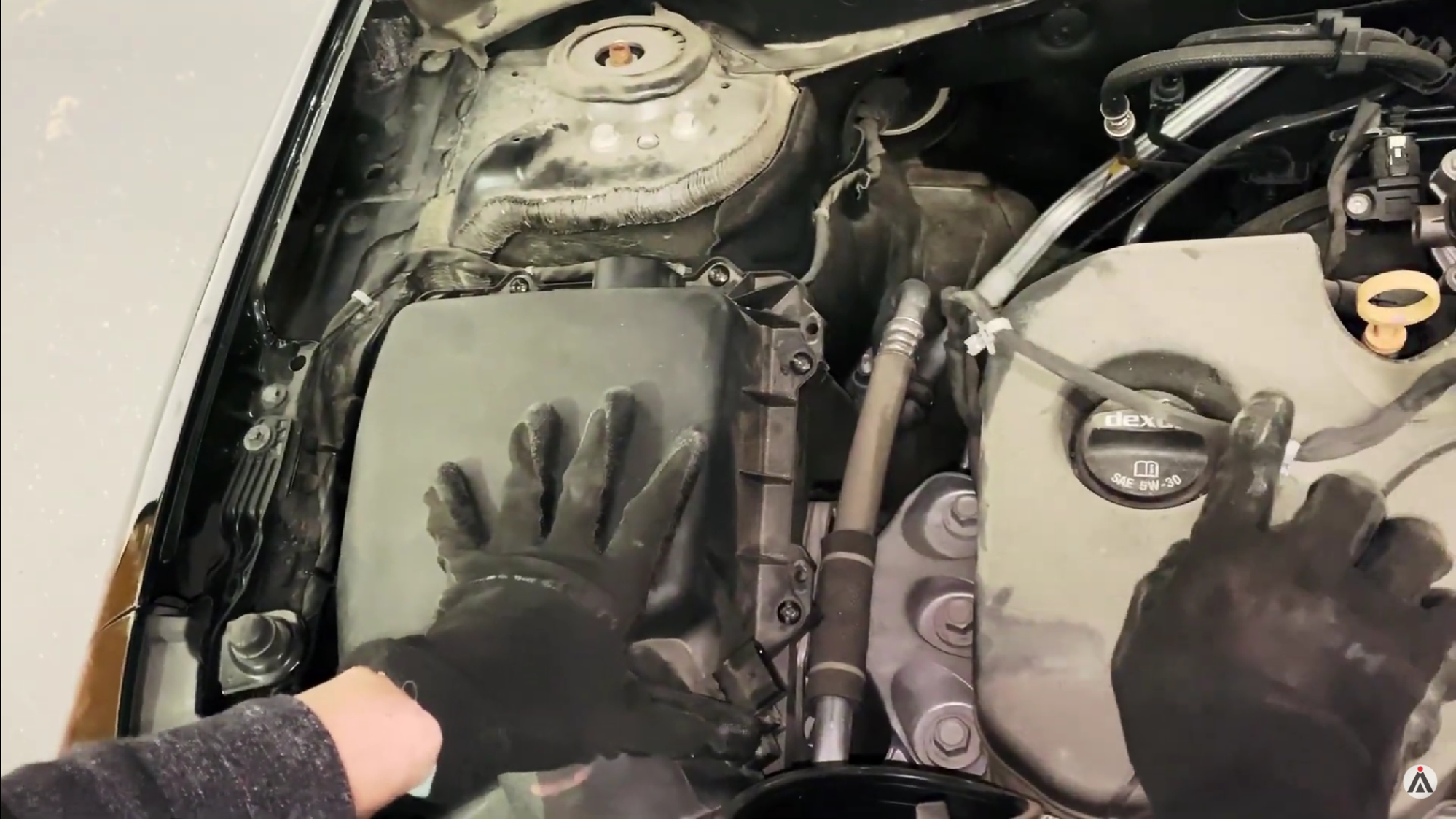

Picture7: Remove the intake.
Picture8: Remove the headlight bulb dust cover.
Picture9: Turn the bulb socket counterclockwise to remove it from the headlight assembly.
Picture10: Unplug the electrical connector from the bulb by releasing the clip on the connector.
Picture11: Put the LED bulb into the headlight housing, the sticking points align to the socket.
Picture12: Connect the power plug.
Picture13: Turn on the headlight to test if the LED bulb works. if it does not work, please turn it around and plug it again.

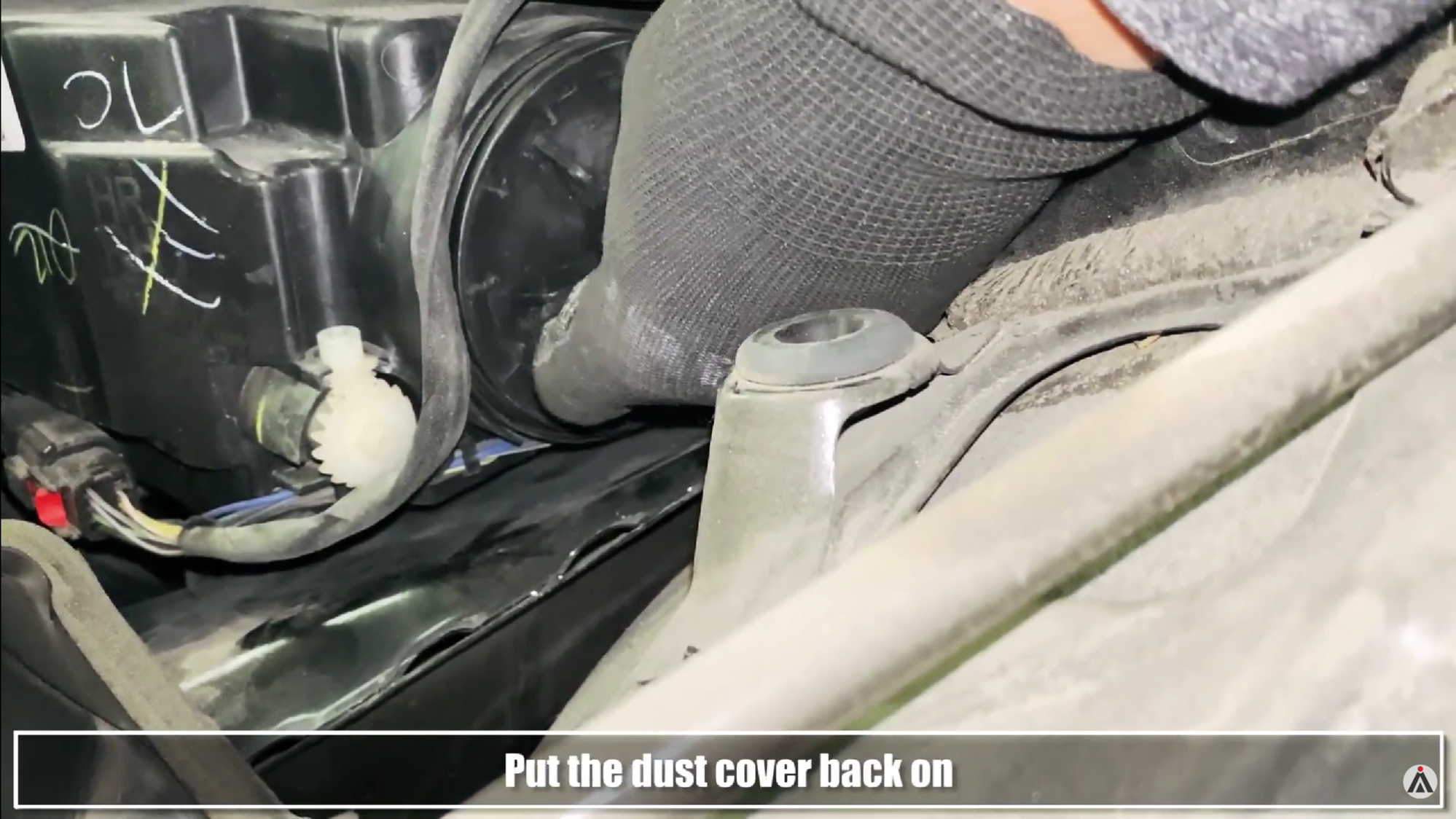

Picture14: Put the dust cover back on.

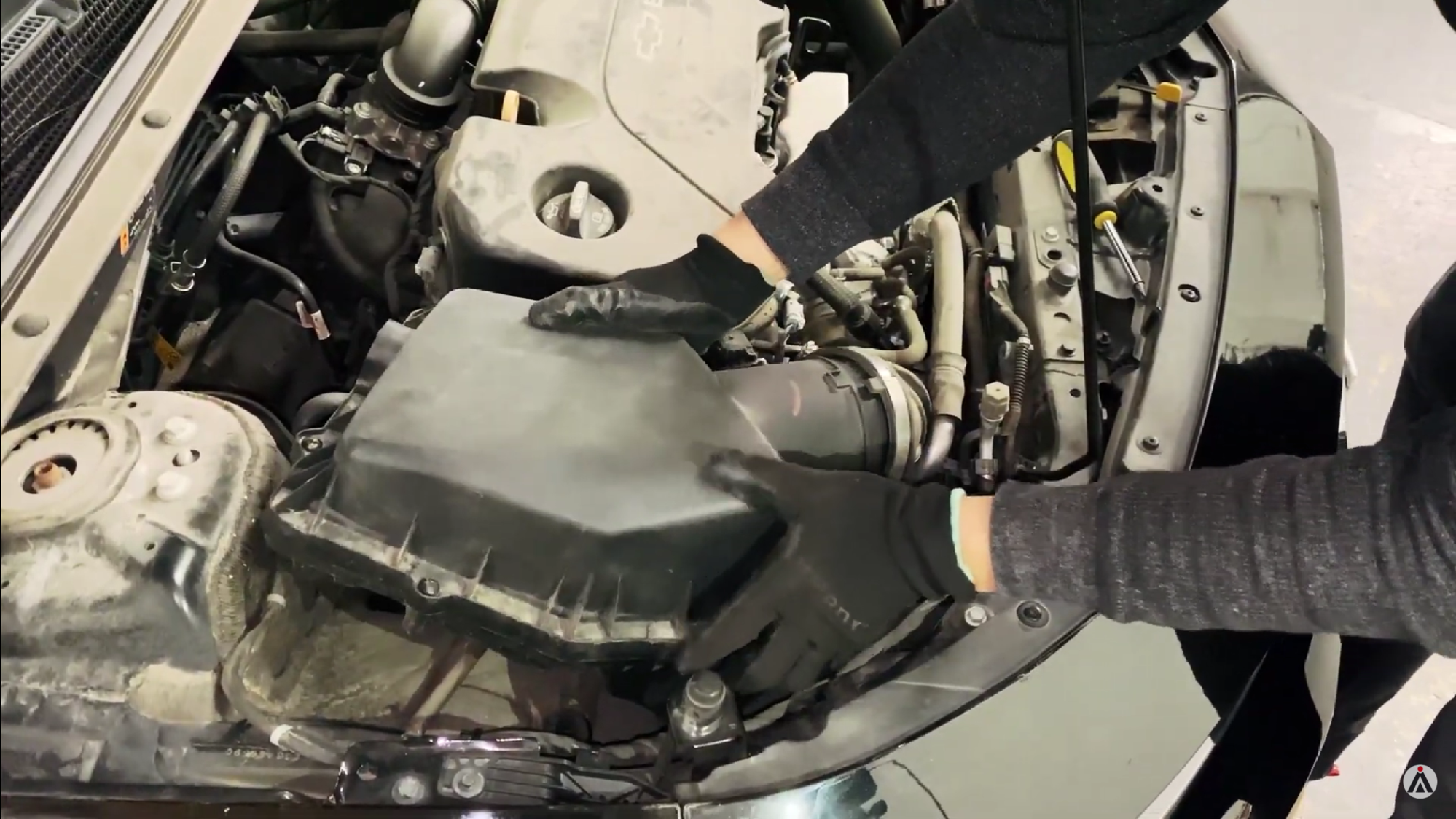

Picture15: Put the intake back.

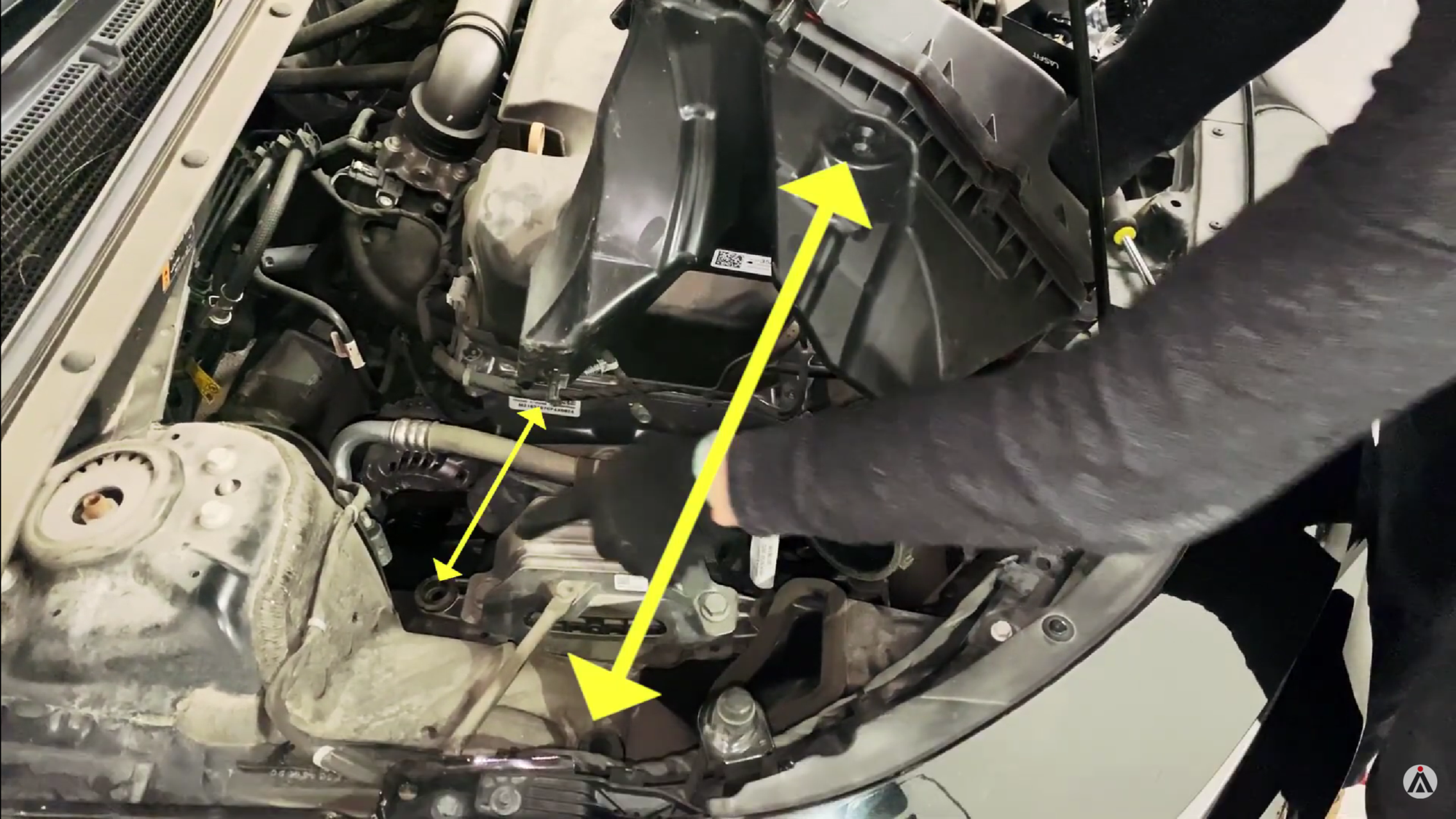

Picture16: Pay attention to the hole alignment in the picture, determine the position according to the alignment principle.
Picture17: Install the intake.
Picture18: Fix hose pipe clamp with the screw driver.
Picture19: Let's change the headlight bulb on the driver side. The same installation steps, but no intake or other brackets are required to remove.
Picture20: Remove the dust cover.
#2
Platinum Sponsor
Thread Starter
Join Date: Jul 2023
Location: 9155 Archibald Ave Ste. C, Rancho Cucamonga, CA 91730
Posts: 107
Received 0 Likes
on
0 Posts
Picture21: Twist out the stock halogen bulb.
Picture22: Unplug the electrical connector from the bulb by releasing the clip on the connector.
Picture23: Connect the LED power plug.
Picture24: Put the LED bulb into the housing and lock it in place.
Picture25: Put the dust cover back on.
Picture26: Comparison of the effects of halogen bulbs and LED bulbs.
Picture27: Comparison of the effects of halogen bulbs and LED bulbs.
We hope this article has provided you with a clearer understanding of our products and how they can enhance your driving experience. If you have any questions about our products or the installation process, please don't hesitate to reach out to us. We're always happy to assist you and ensure that you have a smooth and enjoyable experience with Lasfit's products.
